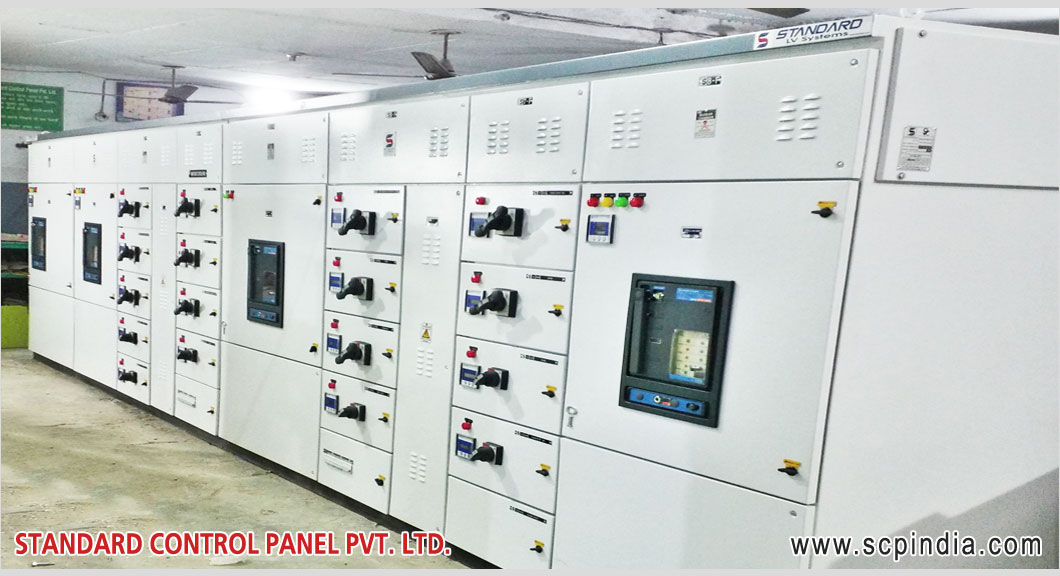

Power Control Centre is used for distribution and control of various power source used in industry. Normally Power Control Centers is installed near power source hence fault level is high. Busbar system in Power Control Centers are designed to suit the fault level as well as temperature rise to 40°c above ambient. Ample space is provided for cable termination. Various protections viz short circuit, overload, earth fault, under voltage etc are provided to protect source and equipment.



Applications Operation, Control & protection of distribution network with or without PLC/BMS Connectivity
System 3 Phase, 3 or 4 wire, 50Hz
Rated Current Upto 6300 Amps
Operational Voltage
110/230v 415v AC
Rated Insulation 1000v
Rated Service Voltage 690v
Ambient Temperature
45 Deg C
Short Time Current
50KA for 1Sec, 105KA peak
Degree of Protection
IP42-IP54
Form of Sepration
Upto 3B/4B (Optional Type 5)
Type Tested for
Short Time Current withstand Temperature Rise Degree of Protection
Bus Bar System
Interleaved above 1600A
Bus Bar Aluminium or Copper
Ref. Standard
IEC61439-12009, IS:8623
Feeder Configuration Semi Drowout or Fix Type
