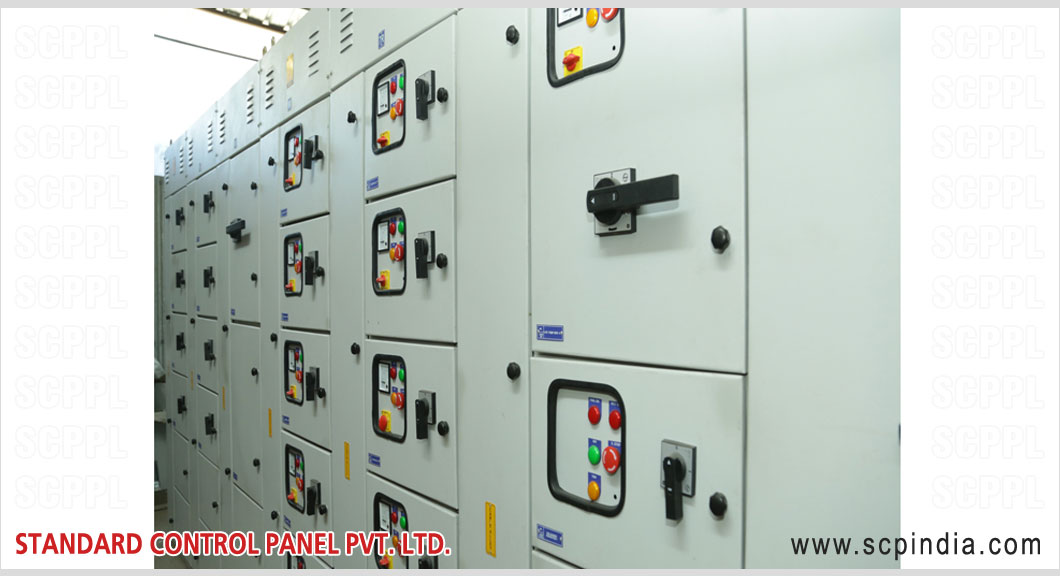

Drawout MCC / PCC Panel

Standard are a leading control panel manufacturer of Draw out panels in the collaboration with highly experienced leading technocrat in this field. Rugged, reliable & safety, true interchangeability are the distinguished features of this design. The design meets technical requirement of all kind of industries such as Cement, Steel Chemical, Fertilizers & many process plants. The designs are capable of accommodating any make of switchgears & are suitable to built intelligent MCC's.


Applications Automatic Power factor correction equipment, turned capacitor banks, dynamic PFC
System 415V 3 Phase, 3 or 4 wire, 50Hz
Rated Power Upto 1200 KVAR
Rated Voltage Capacitor
Rated Insulation 1000v
Rated Service Voltage 690v
Ambient Temperature
45 Deg C
Short Time Current
50KA for 1Sec, 105KA peak
Degree of Protection
IP42, 54, 55, 65 as per Custom Requirement
Form of Sepration
Upto 2B/3B
Type Tested for
Short Time Current withstand Temperature Rise Degree of Protection
Bus Bar Aluminium or Copper
Feeder Configuration
Drowout or Fixed, Extendable Type
Cooling Natural / Forced
De-tuning Conventional or 5.67%-7% or 14%
Contactor / Thysistor
PF Control
Both manual and Automation through APFC relay upto 20 stage
