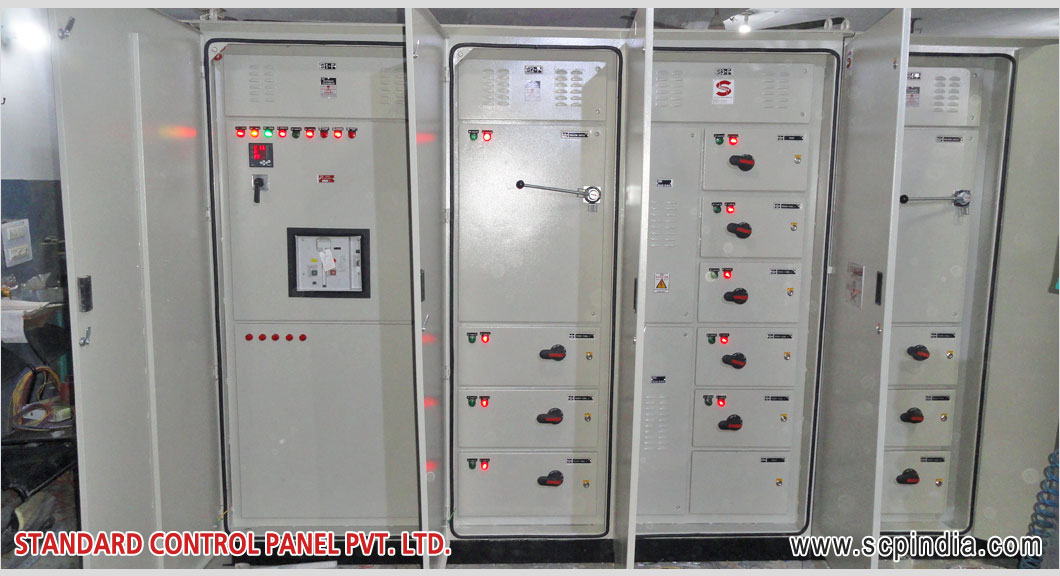

Feeder pillar is an effective electrical enclosure to provide electrical services for low voltage electrical distribution applications. It is designed as compact and robust for outdoor/rugged use with appropriate class of protection form dust/ solids and water/rain. SCPPL offer Feeder pillars that are mainly used for housing or installing various equipments or street lighting units. Low-voltage feeder pillars form a basic part of most public and many private distribution networks. Feeder pillars are connected to the distribution board.
| Applications | Outdoor Application in Operation, Control & Protection of distribution network with or without PLC/BMS connectivity |
| System | 3 Phase, 3 or 4 wire, 50Hz |
| Rated Current | Upto 6300 Amps |
| Operational Voltage |
110/230v 415v AC |
| Rated Insulation | 1000v |
| Rated Service Voltage | 690v |
| Ambient Temperature |
45 Deg C |
| Short Time Current |
50KA for 1Sec, 105KA peak |
| Degree of Protection |
IP42, 54, 55, 65 as per Custom Requirement |
| Form of Sepration |
Upto 3B/4B |
| Type Tested for |
Short Time Current withstand Temperature Rise Degree of Protection |
| Bus Bar | Aluminium or Copper |
| Ref. Standard |
IEC60439-1&2, IS:8623 |
| Feeder Configuration | Drowout or Fixed, Extendable Type |
